⬅ 返回產品頁面 : VIBRATEUR TURBINE ATEX GT EX 尺寸規格 認證 技術說明書
| 種類 | 頻率 (rpm) 2 巴/29 PSI |
頻率 (rpm) 4 巴/58 PSI |
頻率 (rpm) 6 巴/87 PSI |
力 (N) 2 巴/29 PSI |
力 (N) 4 巴/58 PSI |
力 (N) 6 巴/87 PSI |
力量 (磅) 2 巴/29 PSI |
力量 (磅) 4 巴/58 PSI |
力量 (磅) 6 巴/87 PSI |
空氣消耗量（公升/分鐘） 2 Bars/29 PSI |
空氣消耗量（公升/分鐘） 4 Bars/58 PSI |
空氣消耗量（公升/分鐘） 6 巴/87 PSI |
空氣消耗量（CFbr>2 Bars/29 PSI | 空氣消耗量（CFbr>4 Bars/58 PSI | 空氣消耗量（CFbr>6 Bar/87 PSI | 噪音等級（分貝） | 最大溫度使用 |

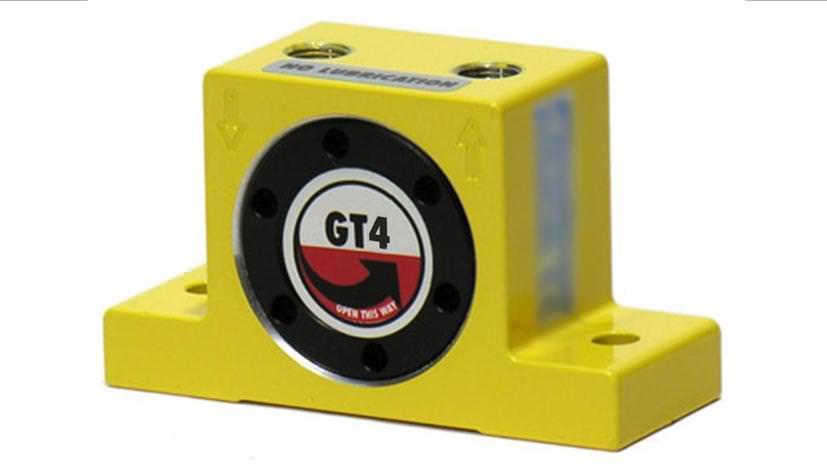

| GT04 EX | 14000 | 15000 | 15000 | 135 | 180 | 200 | 30.41 | 40.54 | 45.05 | 33 | 58 | 83 | 1.18 | 2.07 | 2.96 | 60-70 | 150°C |
| GT06 EX | 11500 | 12000 | 12500 | 130 | 175 | 210 | 29.28 | 39.41 | 47.3 | 33 | 58 | 83 | 1.18 | 2.07 | 2.96 | 60-70 | 150°C |

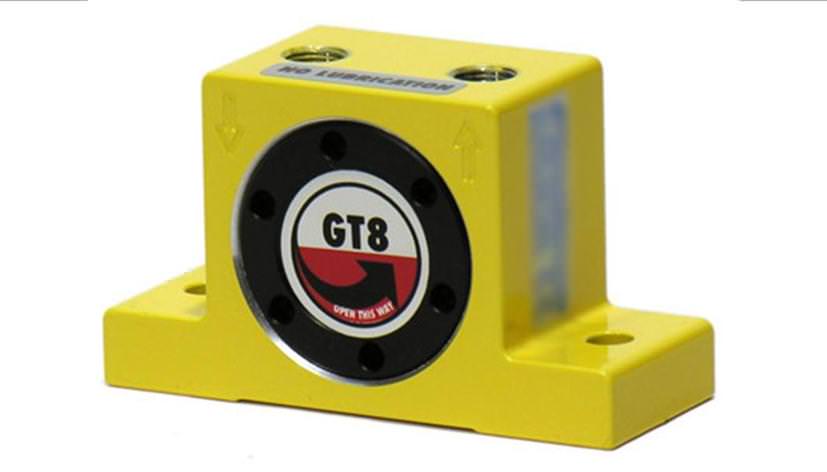

| GT08 EX | 36000 | 42000 | 46000 | 990 | 2060 | 2910 | 222.97 | 463.96 | 655.41 | 46 | 80 | 112 | 1.64 | 2.86 | 4 | 60-70 | 150°C |

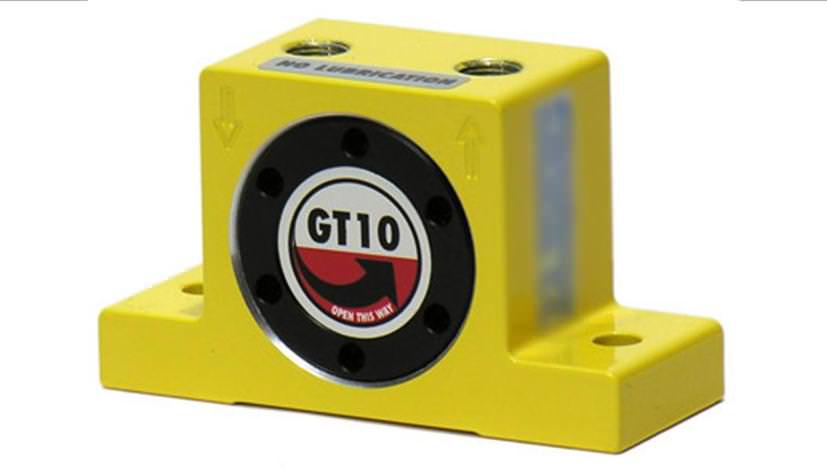

| GT10 EX | 27500 | 35000 | 37500 | 840 | 1390 | 2400 | 189.19 | 313.06 | 540.54 | 46 | 80 | 112 | 1.64 | 2.86 | 4 | 60-70 | 150°C |

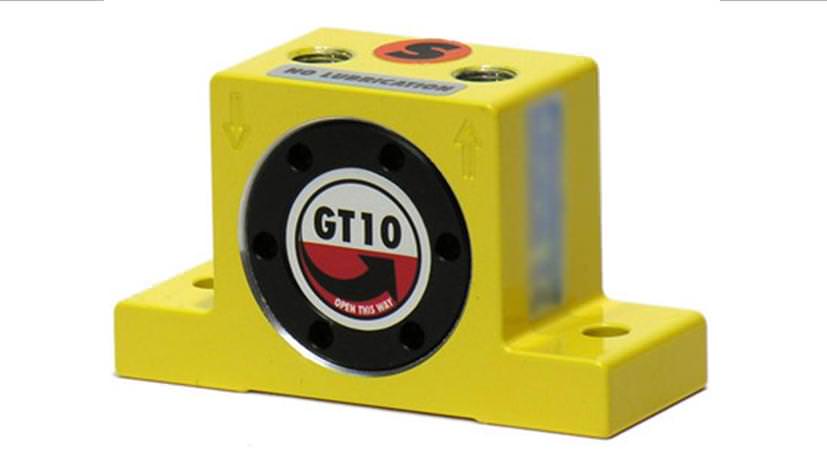

| GT10S EX | 17000 | 23000 | 25000 | 650 | 1350 | 1950 | 146.4 | 304.05 | 439.19 | 46 | 80 | 112 | 1.64 | 2.86 | 4 | 60-70 | 150°C |

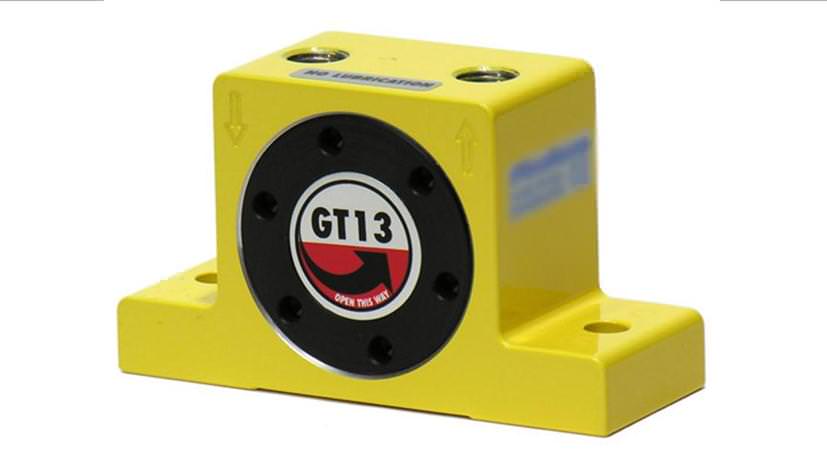

| GT13 EX | 26000 | 30000 | 33000 | 1400 | 2440 | 3730 | 315.32 | 549.55 | 840.09 | 120 | 200 | 290 | 4.29 | 7.14 | 10.36 | 60-70 | 150°C |

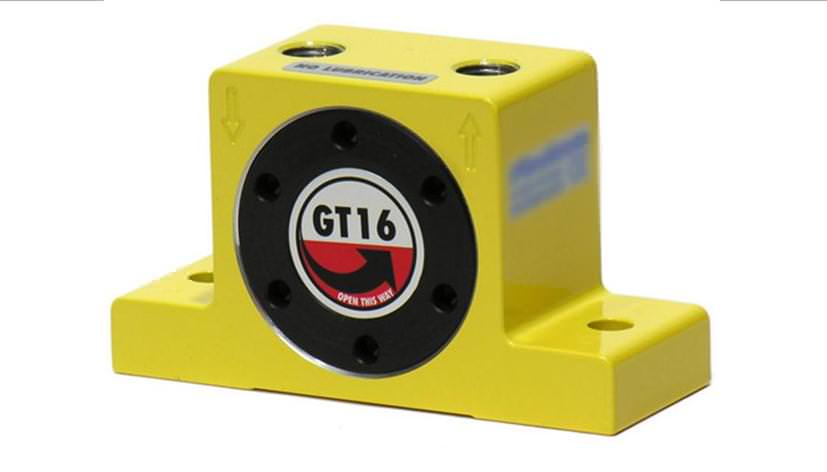

| GT16 EX | 17000 | 21500 | 24000 | 1220 | 2090 | 3160 | 274.77 | 470.72 | 711.71 | 120 | 200 | 290 | 4.29 | 7.14 | 10.36 | 60-70 | 150°C |

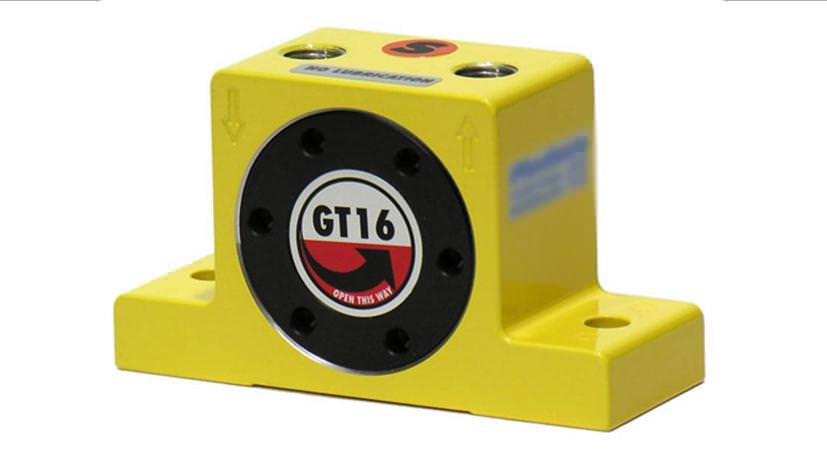

| GT16S EX | 11500 | 15500 | 17000 | 1100 | 1900 | 2700 | 247.75 | 427.93 | 608.11 | 120 | 200 | 290 | 4.29 | 7.14 | 10.36 | 60-70 | 150°C |

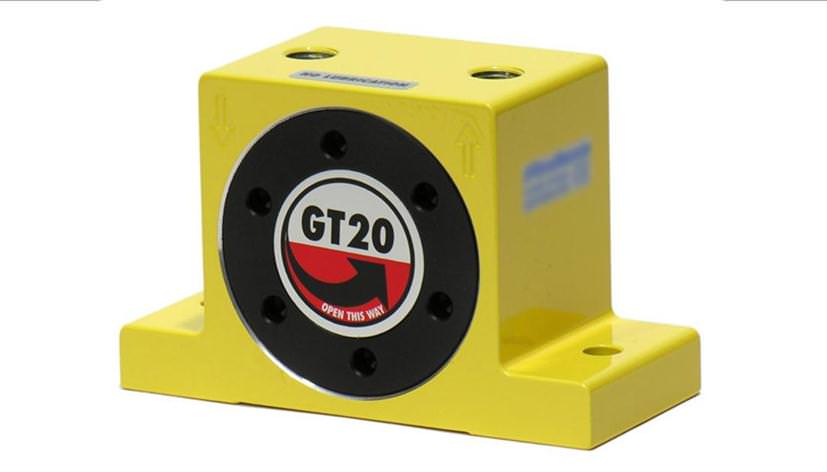

| GT20 EX | 17000 | 20000 | 23000 | 2170 | 4040 | 5520 | 488.74 | 909.91 | 1243.24 | 185 | 325 | 455 | 6.61 | 11.61 | 16.25 | 60-70 | 150°C |

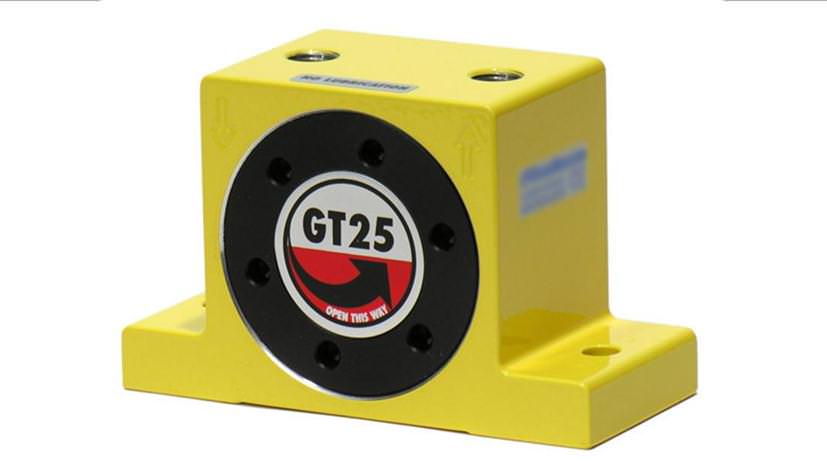

| GT25 EX | 12000 | 15500 | 17000 | 2120 | 3510 | 5070 | 477.48 | 790.54 | 1141.89 | 185 | 325 | 455 | 6.61 | 11.61 | 16.25 | 60-70 | 150°C |

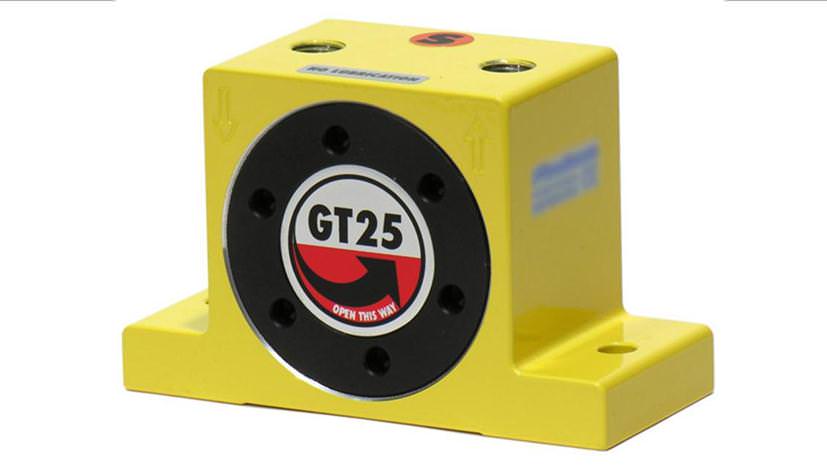

| GT25S EX | 8500 | 11000 | 13000 | 2250 | 3600 | 4900 | 506.76 | 810.81 | 1103.6 | 185 | 325 | 455 | 6.61 | 11.61 | 16.25 | 60-70 | 150°C |

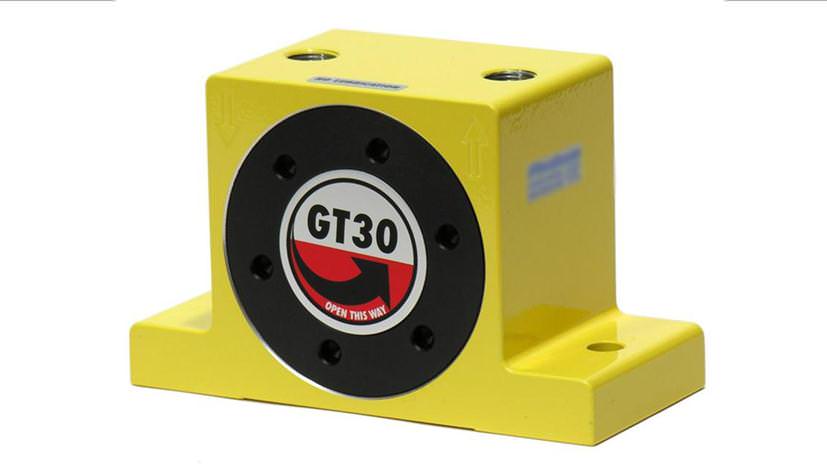

| GT30 EX | 13000 | 14000 | 16000 | 3380 | 5430 | 7540 | 761.26 | 1222.97 | 1698.2 | 330 | 530 | 745 | 11.79 | 18.93 | 26.61 | 60-70 | 150°C |

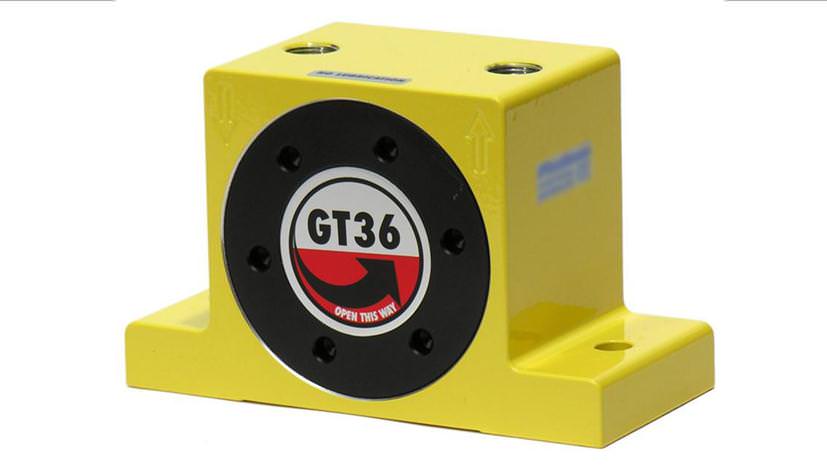

| GT36 EX | 8000 | 10000 | 13000 | 3290 | 5360 | 7190 | 740.99 | 1207.21 | 1619.37 | 330 | 530 | 745 | 11.79 | 18.93 | 26.61 | 60-70 | 150°C |
| GT36S EX | 6100 | 7200 | 8300 | 4100 | 6200 | 7500 | 923.42 | 1396.4 | 1689.19 | 330 | 530 | 745 | 11.79 | 18.93 | 26.61 | 60-70 | 150°C |

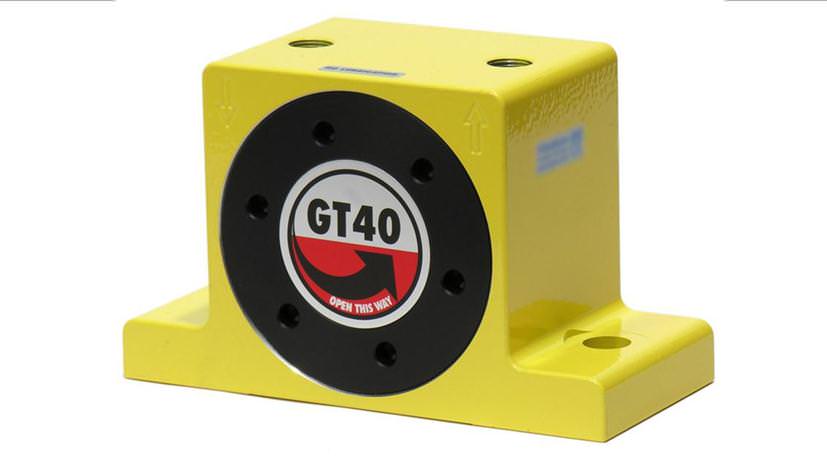

| GT40 EX | 7700 | 8800 | 9500 | 4300 | 7300 | 9800 | 968.47 | 1644.14 | 2207.21 | 425 | 700 | 970 | 15.18 | 25 | 34.64 | 60-70 | 150°C |

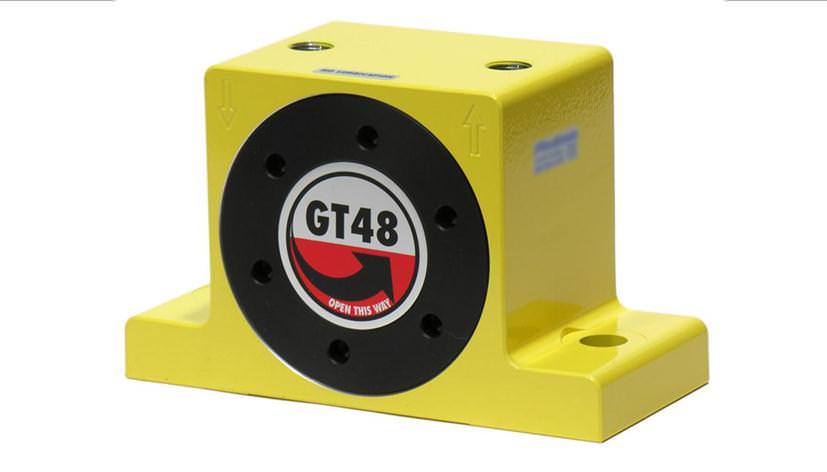

| GT48 EX | 6000 | 7500 | 9700 | 4900 | 7700 | 10500 | 1103.6 | 1734.23 | 2364.86 | 425 | 700 | 970 | 15.18 | 25 | 34.64 | 60-70 | 150°C |
| GT48S EX | 1800 | 5600 | 6300 | - | 7500 | 12000 | - | 1689.19 | 2702.7 | 425 | 700 | 970 | 15.18 | 25 | 34.64 | 60-70 | 150°C |

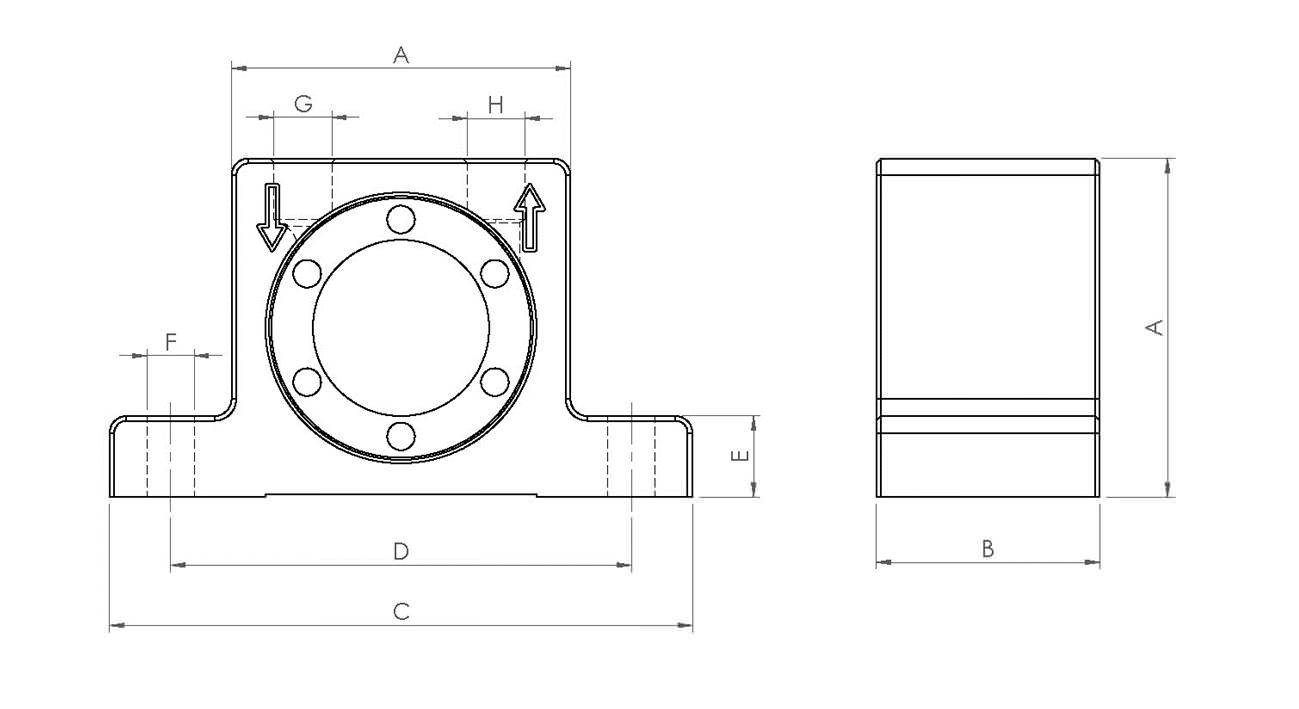

| 種類 | A mm |
A inch |
B mm |
B inch |
C mm |
C inch |
D mm |
D inch |
E mm |
E inch |
F mm |
F inch |
G mm |
G inch |
H mm |
H inch |
振動器重量 kg |
振動器重量 磅 |
| GT04 EX | 40 | 1.58 | 28 | 1.1 | 70 | 2.76 | 56 | 2.21 | 10.5 | 0.41 | 6 | 0.24 | G 1/8" | G 1/8" | G 1/8" | G 1/8" | 0.165 | 0.367 |
| GT06 EX | 40 | 1.58 | 28 | 1.1 | 70 | 2.76 | 56 | 2.21 | 10.5 | 0.41 | 6 | 0.24 | G 1/8" | G 1/8" | G 1/8" | G 1/8" | 0.14 | 0.311 |
| GT08 EX | 50 | 1.97 | 33 | 1.3 | 86 | 3.39 | 68 | 2.68 | 12 | 0.47 | 7 | 0.28 | G 1/8" | G 1/8" | G 1/8" | G 1/8" | 0.25 | 0.556 |
| GT10 EX | 50 | 1.97 | 33 | 1.3 | 86 | 3.39 | 68 | 2.68 | 12 | 0.47 | 7 | 0.28 | G 1/8" | G 1/8" | G 1/8" | G 1/8" | 0.255 | 0.567 |
| GT10S EX | 50 | 1.97 | 33 | 1.3 | 86 | 3.39 | 68 | 2.68 | 12 | 0.47 | 7 | 0.28 | G 1/8" | G 1/8" | G 1/8" | G 1/8" | 0.263 | 0.584 |
| GT13 EX | 65 | 2.56 | 42 | 1.65 | 113 | 4.45 | 90 | 3.55 | 16 | 0.63 | 9 | 0.35 | G 1/4" | G 1/4" | G 1/4" | G 1/4" | 0.565 | 1.256 |
| GT16 EX | 65 | 2.56 | 42 | 1.65 | 113 | 4.45 | 90 | 3.55 | 16 | 0.63 | 9 | 0.35 | G 1/4" | G 1/4" | G 1/4" | G 1/4" | 0.58 | 1.289 |
| GT16S EX | 65 | 2.56 | 42 | 1.65 | 113 | 4.45 | 90 | 3.55 | 16 | 0.63 | 9 | 0.35 | G 1/4" | G 1/4" | G 1/4" | G 1/4" | 0.614 | 1.364 |
| GT20 EX | 80 | 3.15 | 56 | 2.21 | 128 | 5.04 | 104 | 4.1 | 16 | 0.63 | 9 | 0.35 | G 1/4" | G 1/4" | G 1/4" | G 1/4" | 1.09 | 2.422 |
| GT25 EX | 80 | 3.15 | 56 | 2.21 | 128 | 5.04 | 104 | 4.1 | 16 | 0.63 | 9 | 0.35 | G 1/4" | G 1/4" | G 1/4" | G 1/4" | 1.12 | 2.489 |
| GT25S EX | 80 | 3.15 | 56 | 2.21 | 128 | 5.04 | 104 | 4.1 | 16 | 0.63 | 9 | 0.35 | G 1/4" | G 1/4" | G 1/4" | G 1/4" | 1.2 | 2.667 |
| GT30 EX | 100 | 3.94 | 73 | 2.88 | 160 | 6.3 | 130 | 5.12 | 20 | 0.79 | 11 | 0.43 | G 3/8" | G 3/8" | G 3/8" | G 3/8" | 2.2 | 4.889 |
| GT36 EX | 100 | 3.94 | 73 | 2.88 | 160 | 6.3 | 130 | 5.12 | 20 | 0.79 | 11 | 0.43 | G 3/8" | G 3/8" | G 3/8" | G 3/8" | 2.3 | 5.111 |
| GT36S EX | 100 | 3.94 | 73 | 2.88 | 160 | 6.3 | 130 | 5.12 | 20 | 0.79 | 11 | 0.43 | G 3/8" | G 3/8" | G 3/8" | G 3/8" | 2.53 | 5.622 |
| GT40 EX | 120 | 4.73 | 83 | 3.27 | 194 | 7.64 | 152 | 5.99 | 24 | 0.95 | 17 | 0.67 | G 3/8" | G 3/8" | G 3/8" | G 3/8" | 3.69 | 8.2 |
| GT48 EX | 120 | 4.73 | 83 | 3.27 | 194 | 7.64 | 152 | 5.99 | 24 | 0.95 | 17 | 0.67 | G 3/8" | G 3/8" | G 3/8" | G 3/8" | 3.89 | 8.644 |
| GT48S EX | 120 | 4.73 | 83 | 3.27 | 194 | 7.64 | 152 | 5.99 | 24 | 0.95 | 17 | 0.67 | G 3/8" | G 3/8" | G 3/8" | G 3/8" | 4.29 | 9.533 |
